Sleek and Elegant
K5 Unit Chair
Ergonomically Designed
Effortless Management
Enhanced Patient Comfort

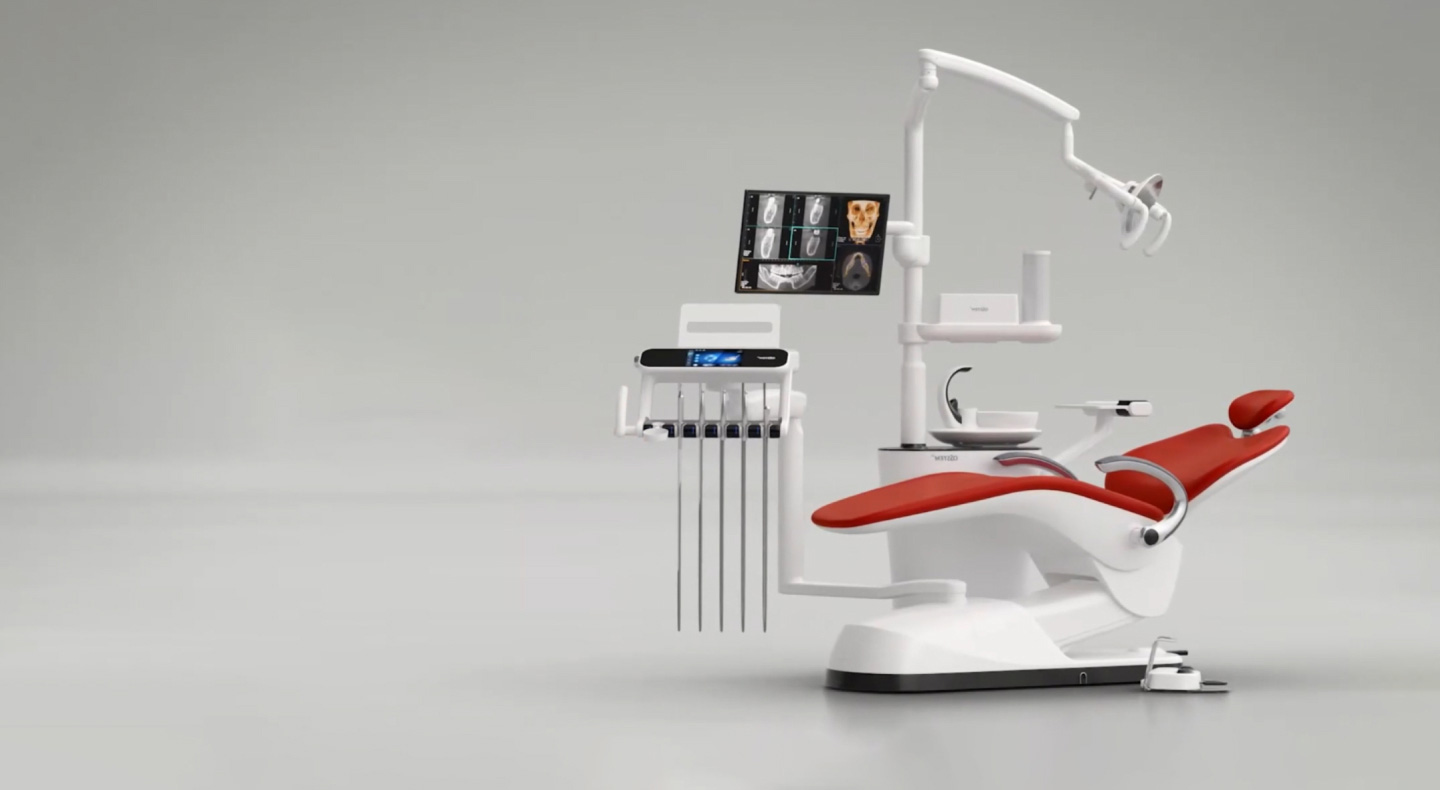

k5 unit chair
Introducing Hiossen's advanced healing unit chair, ergonomically designed for seamless interactions between dentists, assistants, and patients.
The K5 unit chair offers patient comfort and an efficient workspace for doctors, with a flexible delivery system for improved treatment and care access.
Slim Backrest
Provides optimal treatment position by minimizing the interference with the user’s knee.
Comfortable Seat
Ergonomical design provides maximum patient comfort during treatments, including those that will require longer periods.
Two-joint Head Rest
• Angle designed to treat children,elderly, and patients restricted to wheelchair.
• Action performed by using the knee (Freewheeling function).
• Action performed by using the knee (Freewheeling function).
Doctor’s Stool
• Back of the seat can be tilted
Adjustable to support the hip of
the user during patient treatment.
• Base of the seat can be tilted forwards. Reduces pressure on thighs, thus minimizing leg fatigue.
• Base of the seat can be tilted forwards. Reduces pressure on thighs, thus minimizing leg fatigue.
Simple and Adaptable to Your Needs
Seat Tilting Function
Maintains a stable patient treatment position when the backrest reclines.
LED Light & Sterilization
Blue cut-off function : Delays the stiffening of the resin.
The On/Off sensor is turned on to enable sterilization of the handle.
• Easy contamination control.
Sterilizable Solutions for Enhanced Hygiene
Sterilizable Doctor’s Table-Handle
Can be separated and sterilized for easy cleaning and contamination.
Sterilized Water Supply Device
Supplies sterilized water to effectively suppress bacteria and biofilm in the water pipe.
Built-in Water Pipe Cleaning System
Oxygenated water facilitates effective cleaning of the water pipe.
DOWNLOAD
Explore the full Hiossen K5 Unit Chair brochure
Ergonomically Designed, Effortless Management,
Enhanced Patient Comfort.
Smart Investment
K5 Unit Chair Instrument
HIGH-SPEED HANDPIECE
Standard Head
Mini Head
High Power
(Standard)
High Power
(Mini)
Coupling
NSK
Standard Head
H311L - M800L
Mini Head
H511L - M900L
High Power
(Standard)
High Power
(Mini)
Coupling
PTL-CL
BIEN AIR
Standard Head
Tornado LK
Mini Head
Tornado S LK
High Power
(Standard)
Bora 2 LED
High Power
(Mini)
Bora 2 LK
Coupling
UNIFLEX
Low-Speed Handpiece
Motor
Mini Head
Coupling
NSK
External Spray
Motor
E200IL
Mini Head
E205L 1:5
Mini Head
E400i
Coupling
Osstem A400E (NSK)
BIEN AIR
Internal Spray
Motor
CA 1:1L
Mini Head
CA 1:5L
Mini Head
HP 1:1L
Coupling
Electrical Motor
Internal Spray (LED)
Motor
EIL (Bien-Air)
Mini Head
Mini Head
Coupling
SCALER
Dmetec Scaler
Osstem S5L (EMS)
Osstem S5L (EMS)
Color Options
Simple yet Sophisticated
We’ve selected the right colors for you and your interior.
Product Detail
SPECIFICATION
External Spray
AC 220-240 V, 60 Hz
Power Consumption
1.2 KVA
Seat Elevation Method
Vibrational
Seat Height
Max. 2.8 ft, Min. 1.5 ft
Backrest Angle
Maximum angle 71°
Weight
441 lbs
Maximum Load
331 lbs
Actual Dimensions
Width
5.0 ft
Length
6.1 ft
Height
6.3 ft
